if you are looking for the technology to give faster solid & Liquid separation, small footprint large
amount of Capacity then you can consider fast sedimentation machine.
Fast clearifier can be used in a range of industries, including mining and metal finishing, as well as to
treat groundwater, industrial process water and backwash from sand filters.[1] Lamella clarifiers are
ideal for applications where the solids loading is variable and the solids sizing is fine.[2] They are more
common than conventional clarifiers at many industrial sites, due to their smaller footprint.[3]
Wide range of application. For example the municipal wastewater treatment processes.[5] The most
common wastewater application for lamella clarifiers is as part of the tertiary treatment stage. The
clarifiers can be integrated into the treatment process or stand-alone units can be used to increase the
flow through existing water treatment plants.[6] One option for integrating lamella clarifiers into

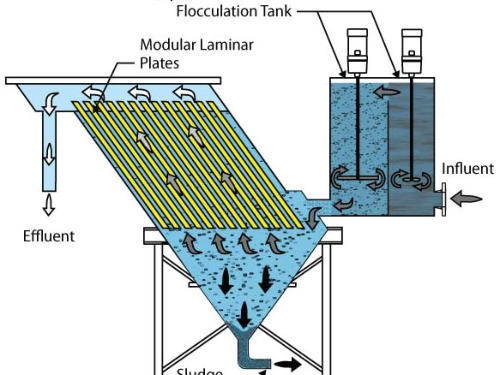

existing plants is for conventional or sludge blanket clarifiers to be upgraded by attaching a bundle of

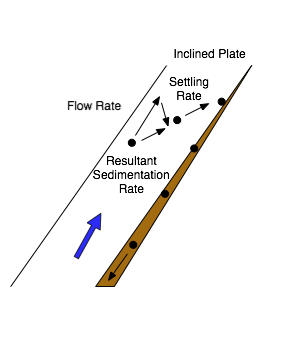

inclined plates or tubes before the overflow in the so-called "clear water zone". This can increase the
settling area by two-fold resulting in a decrease in the solids loading in the overflow.[7]
Lamella clarifiers can handle a maximum feed water concentration of 10000 mg/L of
grease and 3000 mg/L of solids. Expected separation efficiencies for a typical unit are:
90-99% removal of free oils and greases under standard operation conditions.
20-40% removal of emulsified oils and greases with no chemical amendment.
50-99% removal with the addition of chemical agent(s).
Treated water has a turbidity of around 1-2 NTU.
A BEAUTIFUL PHOTO

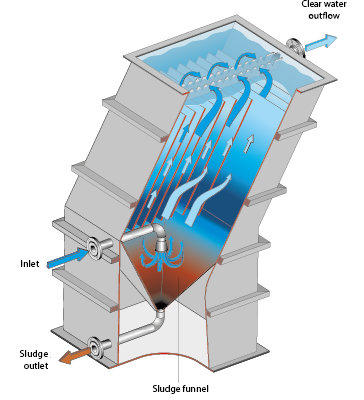

Fast Sediment & Small Footprint

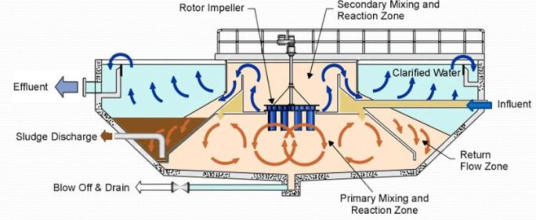

Conventional Clarifier system
Slow sediment & Large Foot Print

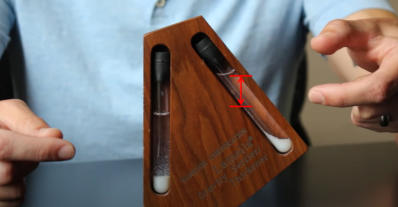

Slow sediment rate

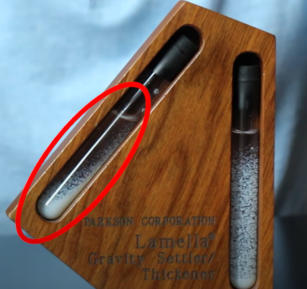

Fast sediment rate faster 3-5 times than conventional
sediment method.
