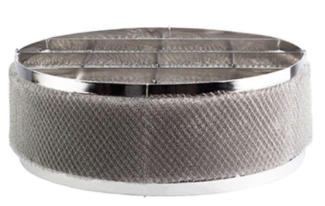

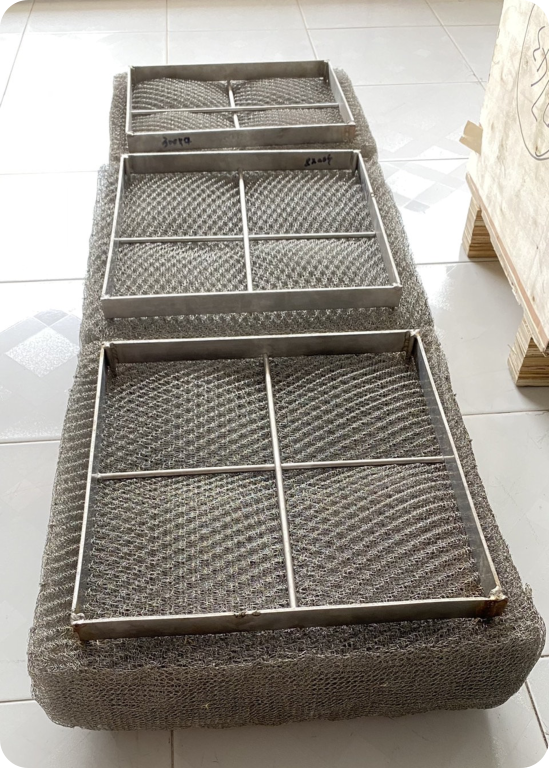

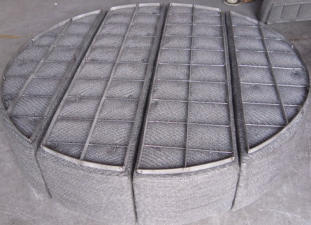

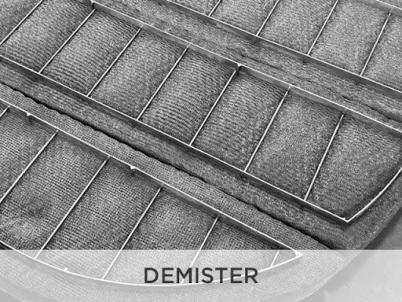

ทางบริษัทได้ผลิต Demister จุดประสงค์เพื่อแยก Vapor--Liquid separation

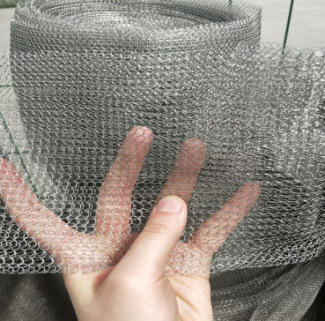

จากเส้นใยถัก ซึ่งสามารถผลิตตามขนาดและ Design ตามที่ต้องการได้
วัสดุที่ผลิตคือ Stainless SUS316L, SUS304

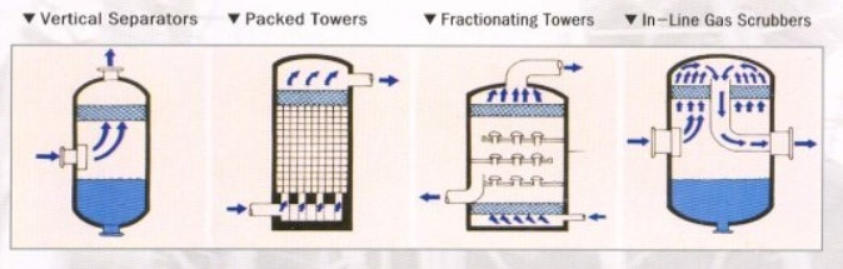

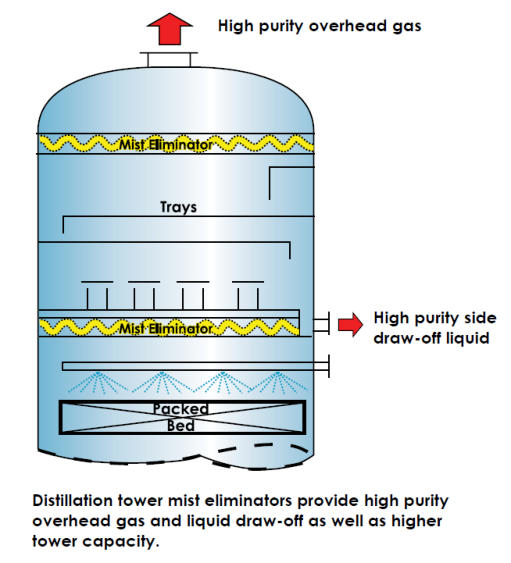

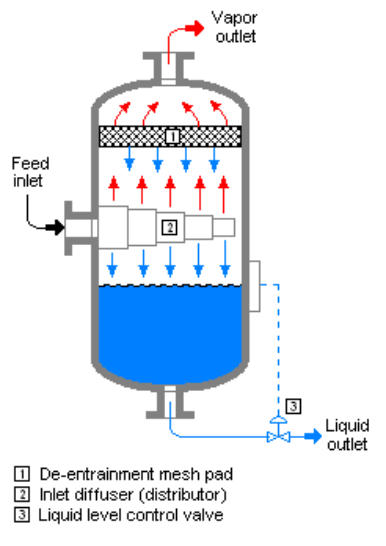

A
demister
is
a
device
often
fitted
to
vapor–liquid
separator
vessels
to
enhance
the
removal
of
liquid
droplets
entrained
in
a
vapor
stream.
Demisters
may
be
a
mesh-type
coalescer,
vane
pack
or
other
structure
intended
to
aggregate
the
mist
into
droplets
that
are
heavy
enough
to
separate from the vapor stream.
Demisters
can
reduce
the
residence
time
required
to
separate
a
given
liquid
droplet
size
by
reducing
the
volume
and
associated
cost
of
separator
equipment.
Demisters
are
often
used
where
vapor
quality
is
important
in
regard
to
entrained
liquids,
particularly
where
separator
equipment
costs
are
high
(e.g.,
high-pressure
systems)
or
where
space
or
weight
savings
are
advantageous.
For
example,
in
the
process
of
brine
desalination
on
marine
vessels,
brine
is
flash-heated
into
vapor.
In
flashing,
vapor
carries
over
droplets
of
brine,
which
have
to
be
separated
before
condensing,
otherwise
the
distillate
vapor
would
be
contaminated
with
salt.
This
is
the
role
of
the
demister.
Demisted
vapor
condenses
on
tubes
in
the
desalination
plant,
and
product
water is collected in the distillate tray.

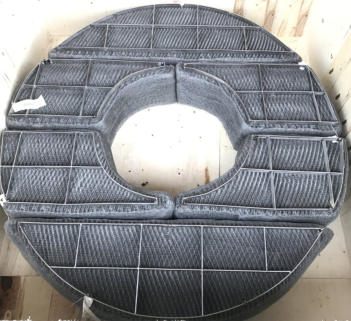

ภาพตัวอย่างเท่านั้น
